Risk-Based Inspection (RBI)

Vision begins with supervision.

AllAssets’ Risk Based Inspection (RBI) module implements, and it’s certified on the American Petroleum Institute (API) recommended practice 580, which defines it as a risk assessment and management process that is focused on loss of containment of pressurised equipment in processing facilities, due to material deterioration. These risks are managed primarily through equipment inspection.

Simply, we assess the likelihood that an asset will fail (events per year) with predefined risk models for the most common damage mechanisms that consider:

The equipment type
Unique asset characteristics: age, usage, environment, installation, design vs. operating conditions, distinctive attributes, such as the presence of an injection point for a piping circuit
Asset condition (based on past and future maintenance and condition monitoring)

And then we assess the magnitude of the consequence if the asset fails (impact per event, measured in $) for several categories:

Safety, Health, or Environmental impact (EPA Dispersion Models)
Monetary loss such as Maintenance cost, Production loss or Disruption to use

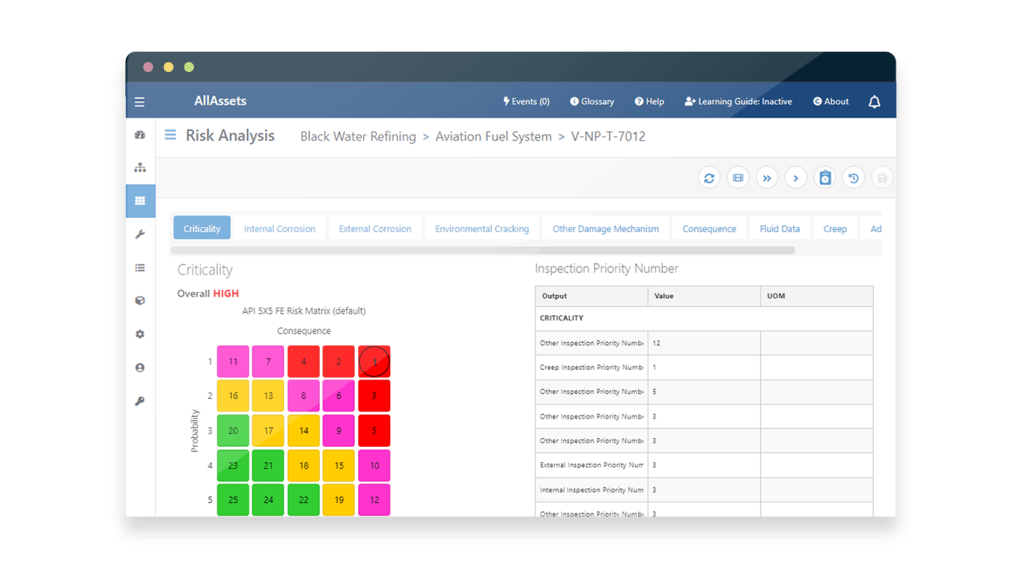

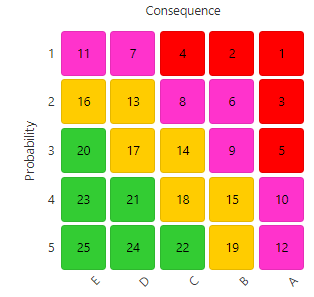

The result of this analysis is a prioritised list of equipment based on their risk profile visualised by a configurable risk matrix like the one below:

Which bring the following benefits to your operations:

M&I Task Plan optimised to the asset and the business risks
Includes industry recommended practices
May increase or decrease current maintenance requirements
Changes with time based on updated equipment conditions discovered during inspections

AllAssets’ Risk-based Inspection module covers the following equipment types:

Pressurised Assets

The main equipment supported by AllAssets RBI are pressure vessels, columns, piping, shell & tube and air-cooled exchangers, storage tanks, boilers, and fired heaters.

Configurable Assets

Users can track asset types not already defined in AllAssets using the Model Builder feature and several template applications, which allows you to create risk models and inspection plans for these assets.

Relief Devices

AllAssets handles not only pressure relief valves, but also rupture disks and vacuum vents.

Key Software Features

Proven risk model for fixed equipment and relief devices use and trusted by millions of assets (and their humans) worldwide with embedded automations such as corrosion rate and inspection confidence calculations to expedite the time you spend doing analysis vs. manual work.
Library of ready-to-use fluid data, construction code, material grades, material specs and other attributes that come out of the box and can also be configured by the user.
Mass risk analysis capabilities so that you can run risk on a number of assets at the same time using advanced filtering to accelerate analysis time.

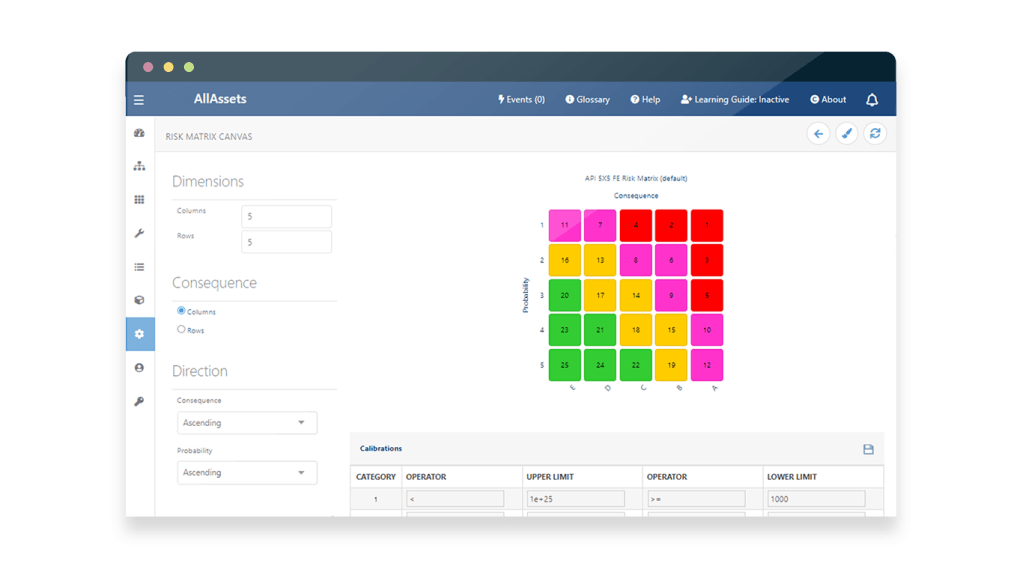

No-code risk matric application which allows you to configure the standard 5×5 risk matrix to meet your corporate standards or create your own risk matrix with different dimension such as 6×6.

Explore AllAssets

IDMS and Asset Hub

Manage inspection and maintenance records
Keep tabs on issues with anomaly management
Thickness monitoring and trending
Single view of the most important aspects of the integrity of your assets

Maintenance Optimisation

FMEA/RCM analysis
Best-in-class asset strategies for your assets based on their condition
Optimization methods based on cost, reliability, and availability to improve your maintenance program’s effectiveness and cost

Model Builder

Low-code model creation to productize your knowledge
Out-of-the-box models to accelerate time-to-value
20+ RBI models with over 40,000 strategies
40+ models for maintenance optimization that cover the most critical equipment classes
